- Rp ½ to Rp 1¼
- Made of stainless steel
Usage

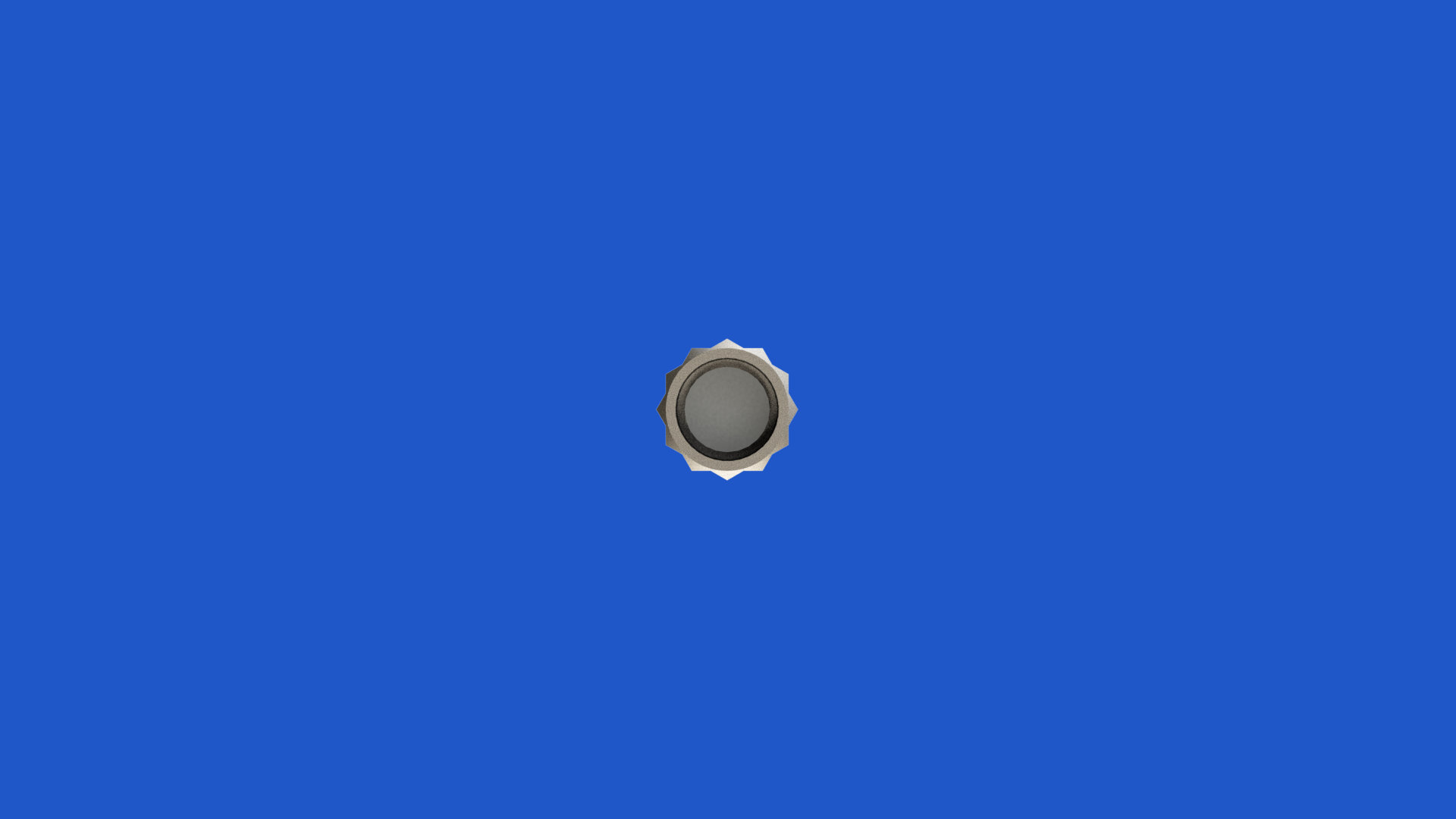

The corrugated pipes in the DWE series are used for simple, flexible, time- and cost-saving connection of water treatment systems to water-carrying installations and pipes. Even differences in height and uneven floors can be easily compensated for without the need for costly adjustments to a rigid pipe.
Functionality
The corrugated pipe can be bent by hand in tight radii (R≥2 • Da) without any loss of cross-section. The corrugated pipes and union nuts are made of stainless steel (material AISI 316L).
When dimensioning, ensure that the corrugated pipes have a smaller nominal diameter than the connection fittings. This means that a corrugated pipe with a union nut Rp1 has a nominal diameter of DN20, not DN25!
Special designs and other sizes are available on request.
Advantages
Can be bent without tools (R≥2 • Da)
Approved for drinking water
Maximum operating pressure 15 bar
Special lengths up to 6 m available on request
Machine-crimped ends
Scope of delivery
Two corrugated pipes, flanged on both sides and fitted with union nuts
Four flat sealing rings
