- 5, or 7 filter cartridges
- Operating temperature up to 80°C
Usage

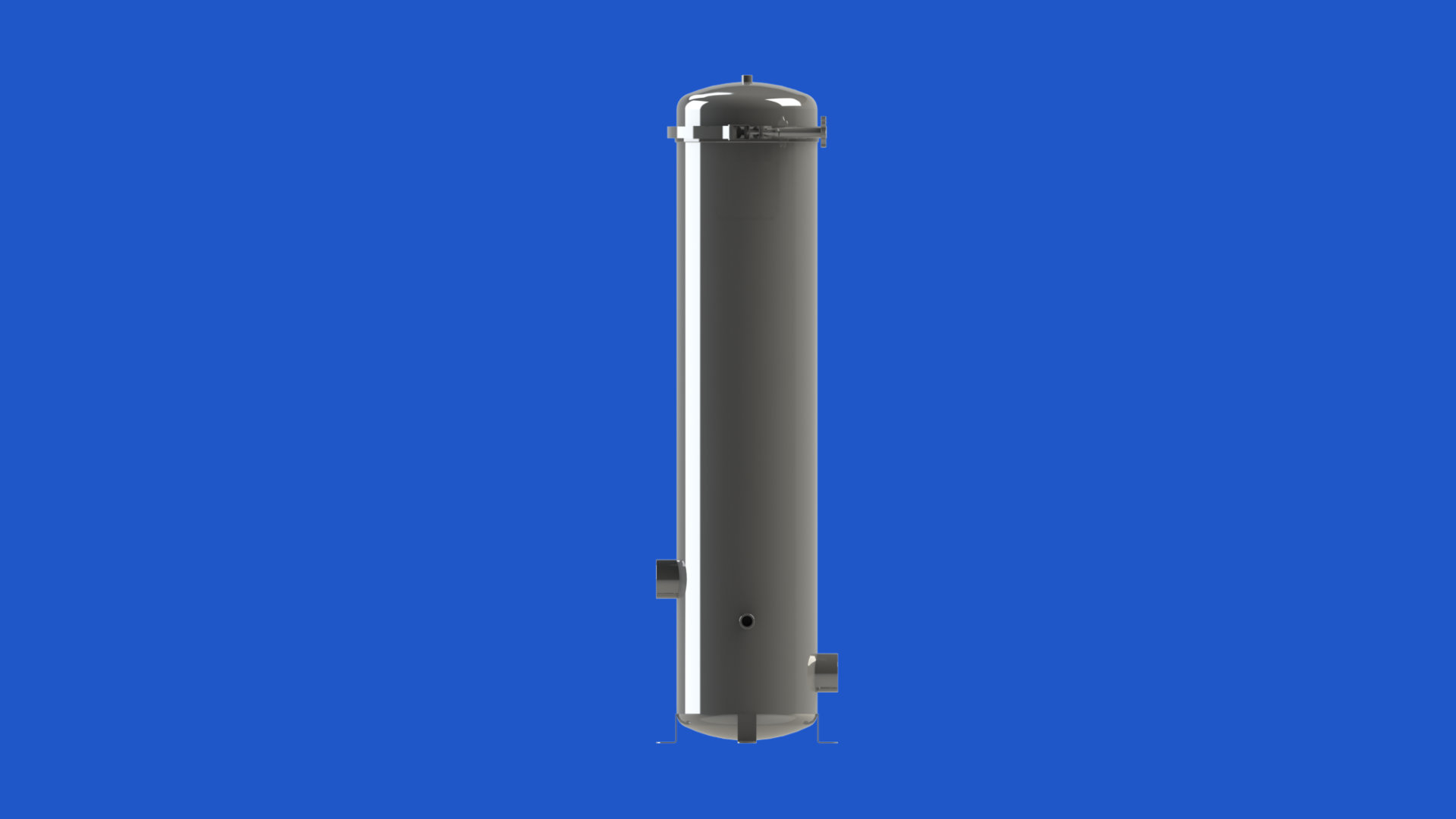

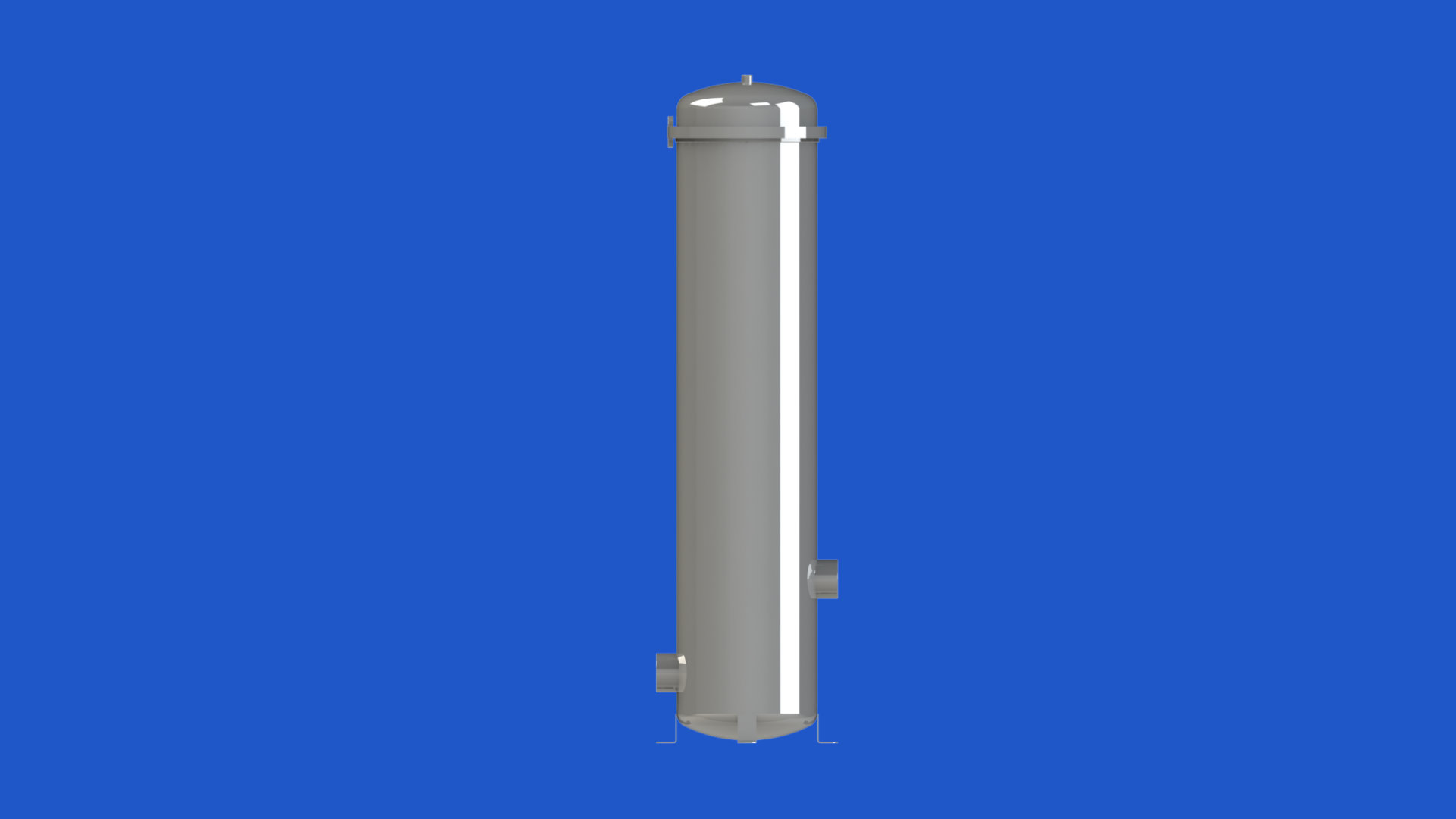

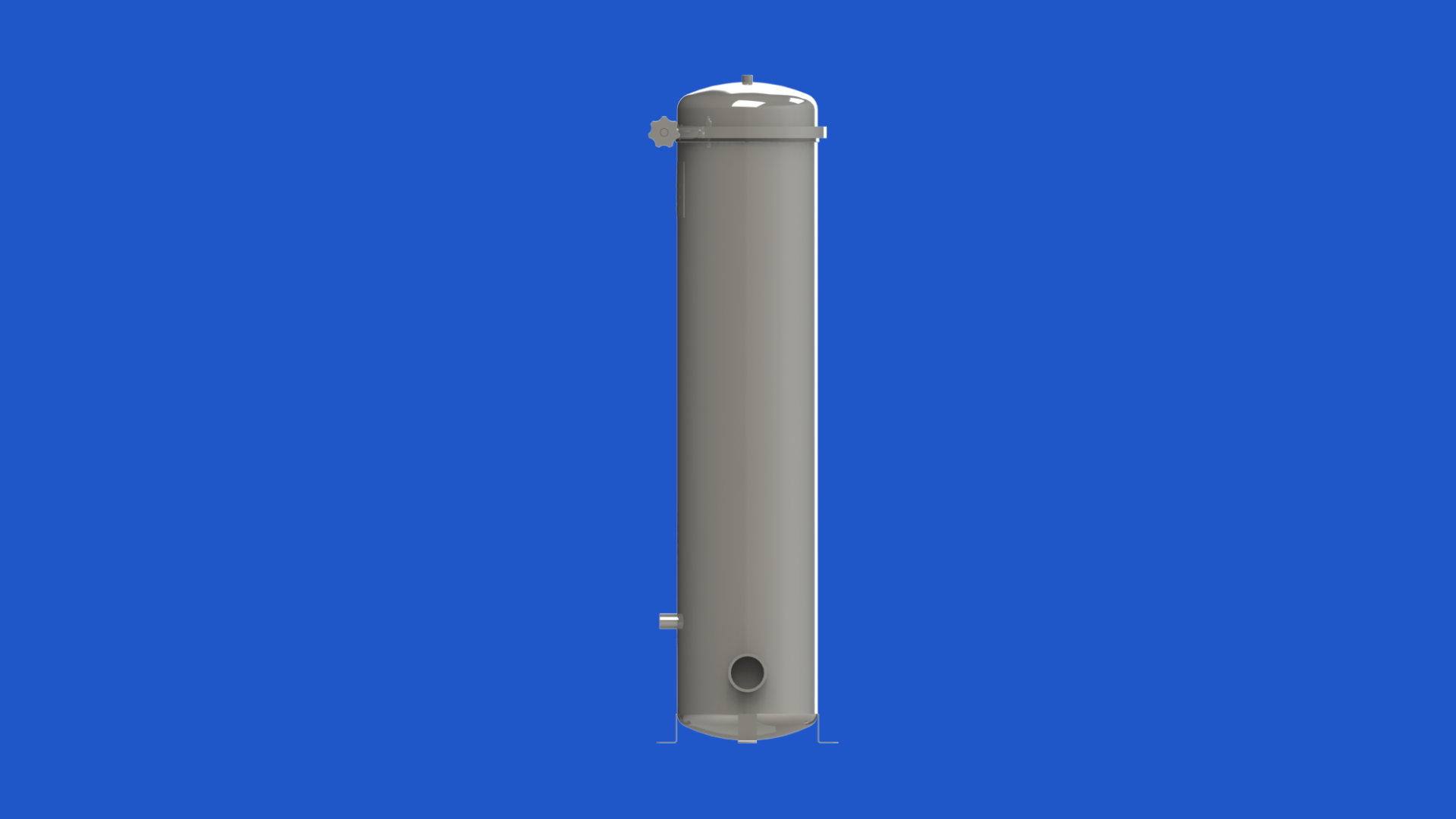

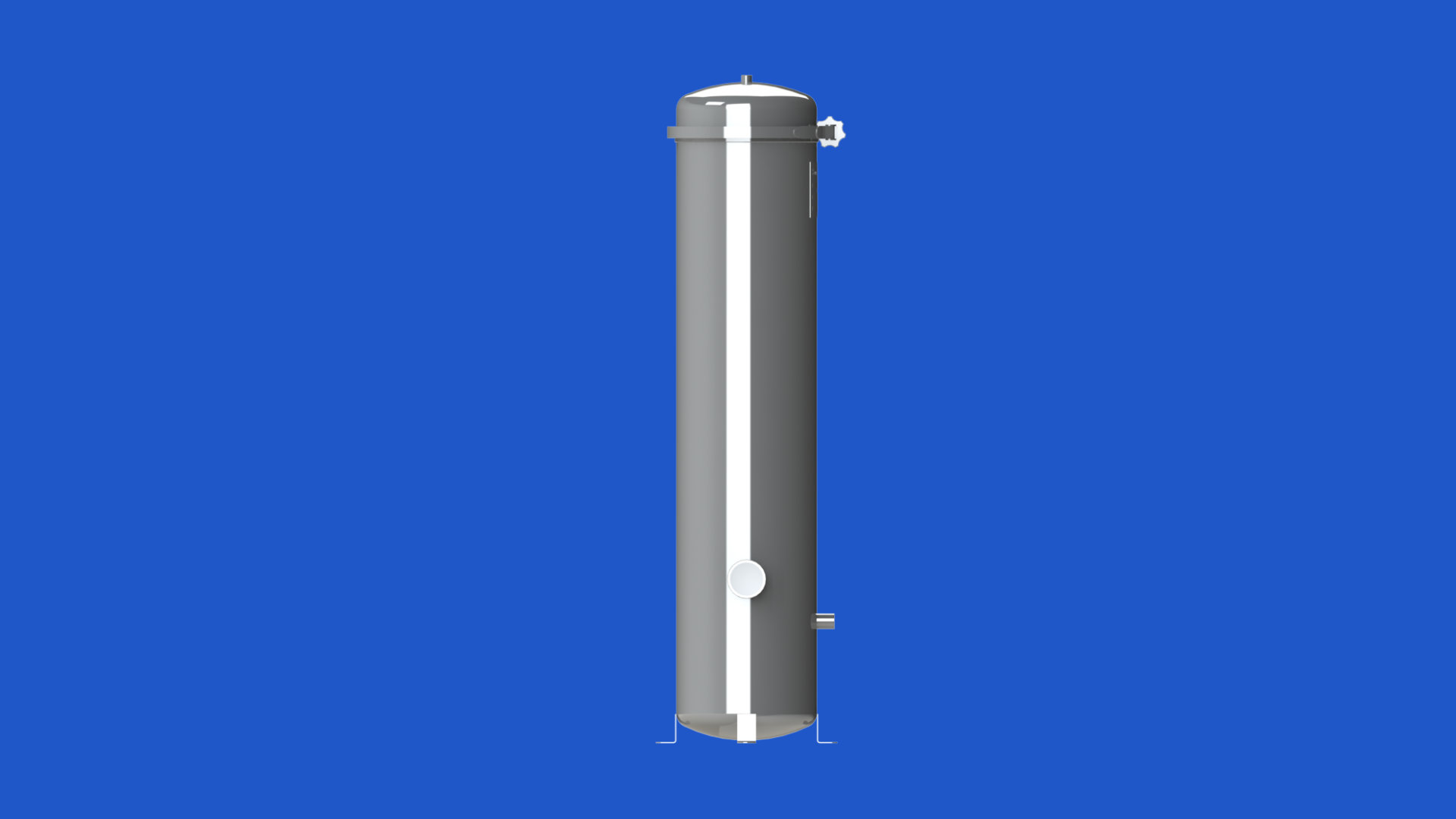

The stainless steel filter housings in the EF5 and EF7 series are used to accommodate filter elements that are open on both sides for a wide variety of liquid filtration tasks. The flow rate depends on the type of filter inserts used.
The housings are made of material 1.4301. The quick-release cover fastener in the form of a profile clamp enables the filter elements to be changed quickly and easily.
Functionality
The inlet of the liquid to be filtered is at the bottom radial side of the tank shell. The filtrate is also discharged radially on the opposite side, but offset downwards.

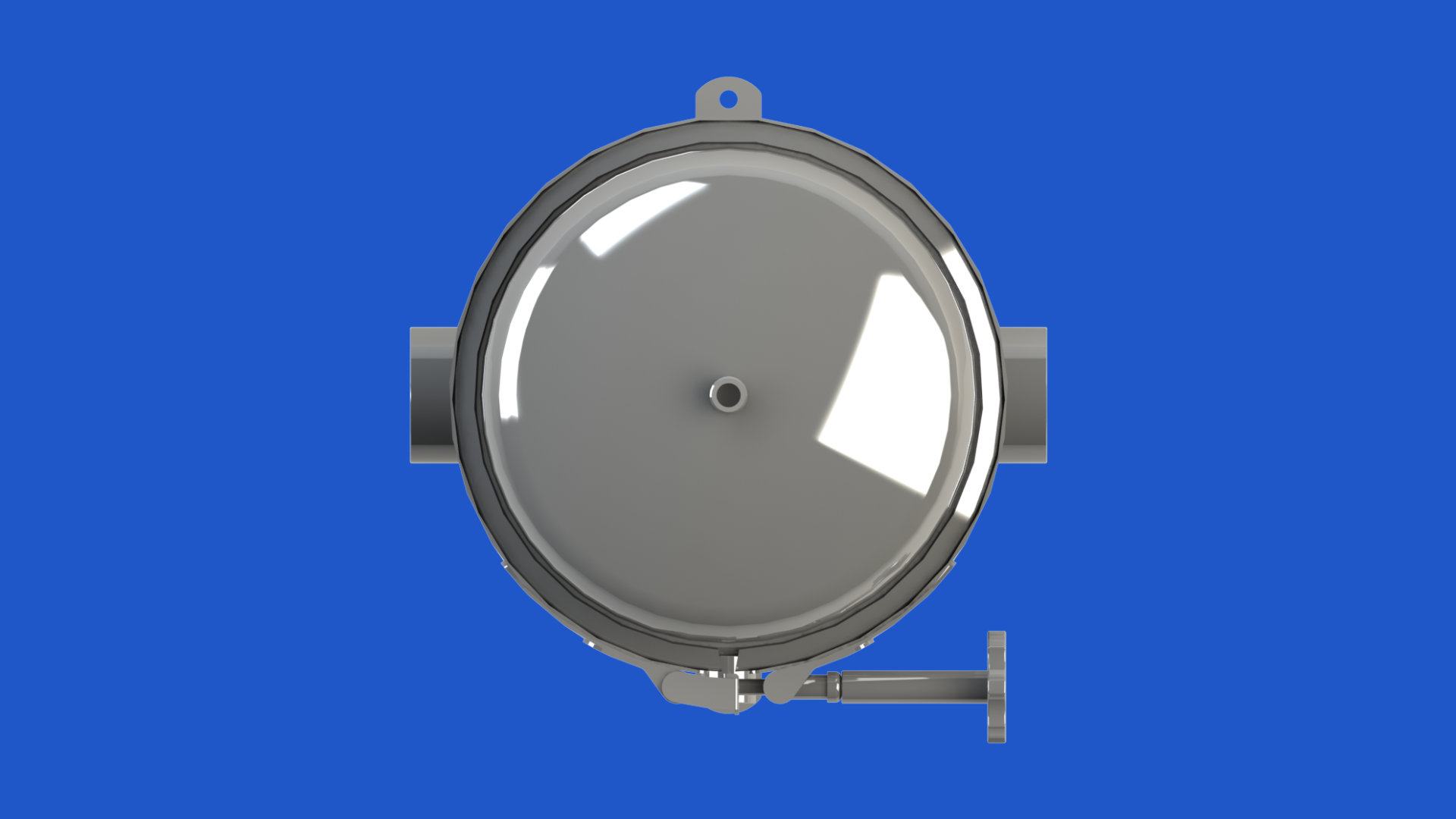

The filter cartridges can be replaced without tools by opening the profile clamp and removing the housing cover.
Advantages
Robust stainless steel construction
Additional drain connection R3/4
Vent connection in the cover Rp1/4
Tool-free filter cartridge replacement
Maximum operating pressure 10 bar
Permissible medium temperature -10 to +80°C
Seal material FPM
Housing material 1.4301 (AISI304)
Welded-on feet
Many different filter cartridges available
Scope of delivery
Filter housing
