- Water meter controlled
- Capacity 50 to 250 cubic meters per day
Usage
The EWF1-SXN series of individual water softeners are equipped with a separate salt dissolving tank and are suitable for softening drinking water.
The amount of soft water withdrawn is measured fully automatically and transmitted to the microprocessor control unit, where the remaining capacity and operating status of the system are displayed. Once the set capacity has been exhausted, the control unit triggers regeneration.
A reliable 5-stage central control valve, low-voltage transformer, time-controlled brine refill, safety brine valve, and sieve bottom for dry storage of the salt supply, as well as regular maintenance, guarantee many years of trouble-free operation of the system. The systems are supplied with a waste water hose set.
Functionality
The amount of softened water extracted is recorded by a turbine meter and transmitted to the control system. Once the capacity of the filter tank in operation has been exhausted, the control system automatically initiates regeneration of the exhausted filter tank. The control valve regulates both the water flow through the tank during operation and the regeneration phases:
- Backwashing
- Salting/Slow washing
- Washing out
- Refill salt dissolving container
During regeneration, hard water is supplied to consumers.
Advantages
Fully encapsulated safety transformer
Varistors to protect the control system from external influences
Salt dissolving tank with sieve bottom for dry storage of regeneration salt and for precise determination of brine quantity
Safety brine valve for safe extraction and controlled refilling
Robust distribution system with stable lower nozzle for optimal capacity utilization
Supplying consumers with raw water during regeneration
Fully automatic operation
High-quality brass flow sensor
Easy to use
Low support and maintenance requirements
Space-saving design
Low operating costs
Simple control
Scope of delivery

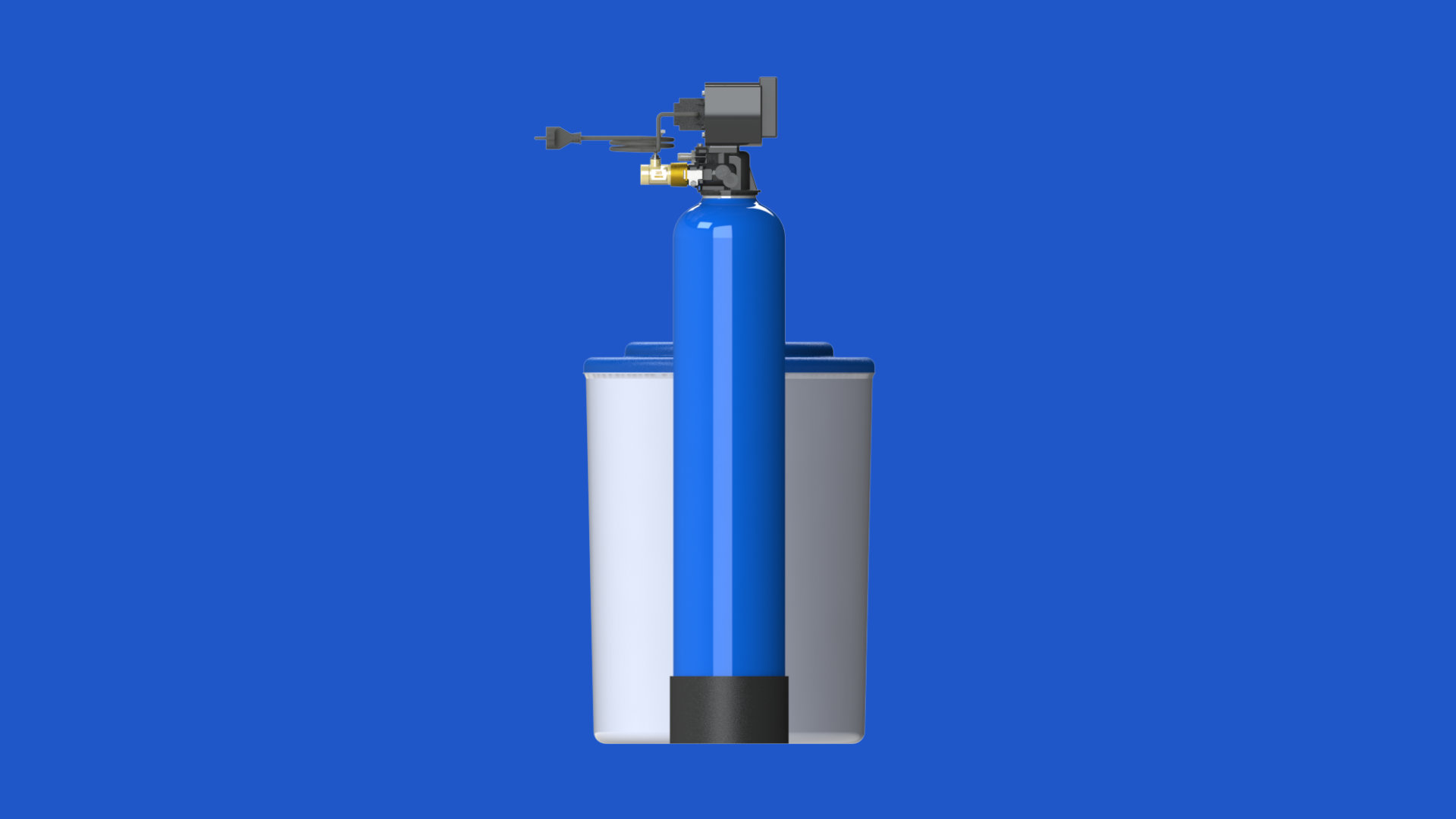

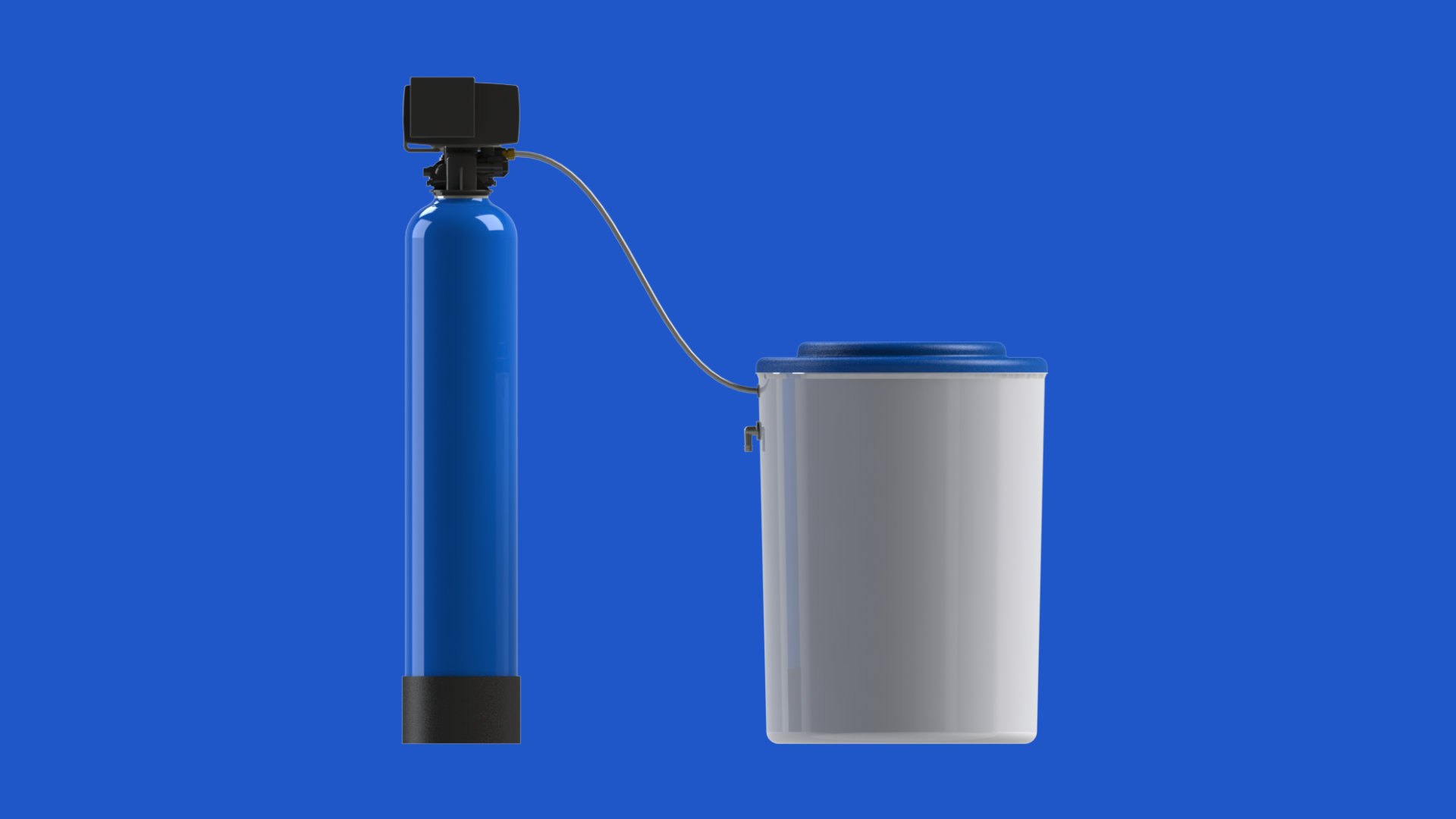

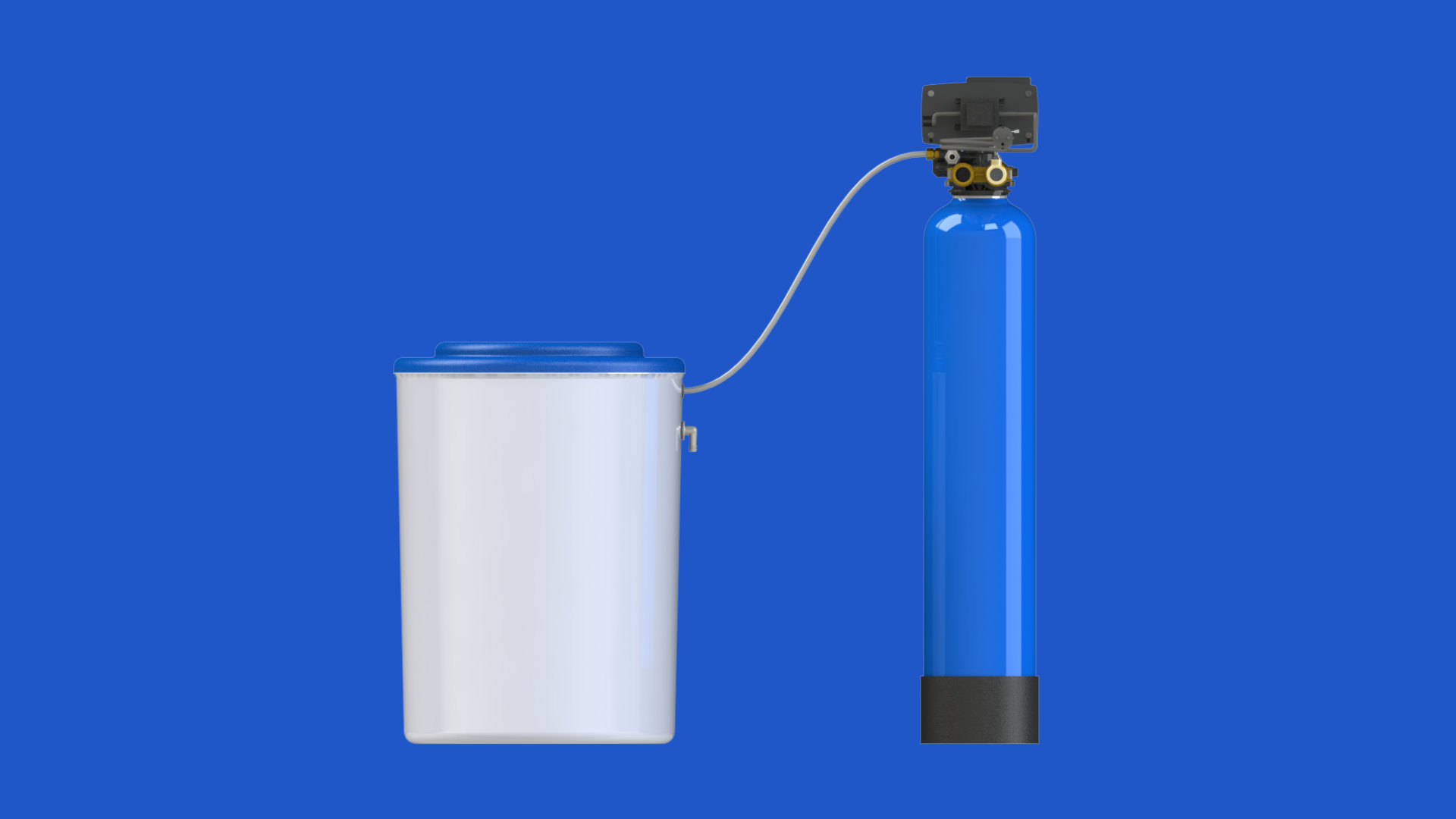

Individual water softening system, largely pre-assembled and ready for connection, for free-standing installation, consisting of:
Filter container made of glass fiber reinforced plastic filled with high-quality cation exchange material in food grade quality
Plastic central control valve with microprocessor control and built-in flow sensor in MS housing
Salt dissolving tank with sieve bottom and brine valve
Drain and brine hoses
Hardness testing equipment
